Comprehensive Introduction to the Techcomp S1010/1020 Single-Beam UV-VIS Spectrophotometer: A Complete Guide to Features and Benefits
In today's complex and precise world of science and industry, analytical instruments play a critical role in ensuring quality, advancing research, and driving technological development. One of these indispensable tools is the UV-VIS spectrophotometer, which is recognized as a key instrument across a wide range of applications—from chemistry and biochemistry to pharmaceuticals, environmental science, and the food industry—due to its unique ability to measure light absorption or transmittance in the ultraviolet and visible regions. These instruments enable researchers and specialists to accurately determine material concentrations, sample purity, and even reaction kinetics. However, selecting the right spectrophotometer that covers both technical needs and project budget can be a real challenge.
Amid this landscape, the Techcomp S1010/1020 Single-Beam UV-VIS Spectrophotometer has secured a special place in labs worldwide in recent years as an advanced and reliable solution. This series of spectrophotometers has established itself as an ideal choice for a broad spectrum of applications, from academic teaching and research to quality control in various industries, by combining accuracy, ease of use, and durability. The goal of this article is to provide an in-depth, comprehensive review of the Techcomp S1010/1020 single-beam UV-VIS spectrophotometer. We plan to take a detailed look at all the features, capabilities, and benefits of this instrument to help you fully understand its potential and, ultimately, make an informed decision when outfitting your lab. Stick with us as we uncover the exceptional capabilities of this analytical tool.
Section 1: What is a UV-VIS Spectrophotometer and How Does It Work?
UV-VIS Spectrophotometer Principles: Understanding the Core of Spectroscopy
To fully grasp the capabilities of the Techcomp S1010/1020 single-beam UV-VIS spectrophotometer, we first need to familiarize ourselves with the basic principles of UV-VIS spectroscopy and how this instrument operates. UV-VIS spectroscopy is an analytical method that works based on the interaction of light with matter. Specifically, this technique measures the amount of light (electromagnetic energy) absorbed or transmitted by a sample across the ultraviolet (typically 200 to 400 nm) and visible (typically 400 to 800 nm) wavelength ranges. Every substance has a unique absorption spectrum, like a fingerprint, based on its chemical structure, which allows for its identification and concentration determination.
UV-VIS Spectroscopy in Simple Terms: Absorption and Transmittance
When light passes through a sample, the molecules within the sample may absorb part of the light's energy at specific wavelengths. This energy absorption causes electrons to jump to higher energy levels. The amount of light absorbed by the sample is directly related to the concentration of the absorbing substance in the sample, as well as the path length the light travels through the sample. This relationship is described by the Beer-Lambert law. This law forms the backbone of quantitative measurements in UV-VIS spectroscopy. By measuring the absorbance at a specific wavelength and knowing the molar absorptivity and path length, you can determine the concentration of the unknown substance. For example, in biochemistry labs, this method is used to determine the concentration of proteins and nucleic acids (DNA/RNA), which show characteristic absorption at specific wavelengths (such as 280 nm for proteins and 260 nm for DNA/RNA).
Main Components of a Spectrophotometer: From Light Source to Detector
Regardless of the type (single-beam or double-beam), a spectrophotometer consists of the following key components, each playing a crucial role in the measurement process:
-
Light Source: This part is responsible for generating light in the desired wavelength range (UV-VIS). In UV-VIS spectrophotometers, two types of lamps are typically used:
-
Deuterium Lamp (D2): Suitable for producing light in the ultraviolet (UV) range.
-
Tungsten-Halogen Lamp: Used to produce light in the visible (VIS) and near-infrared (NIR) ranges. Some more advanced models, like the Techcomp S1020, may use Xenon lamps, which cover the entire UV-VIS spectrum and have a longer lifespan.
-
Monochromator: This component separates the white light (from the light source) into its constituent wavelengths. A monochromator usually contains a diffraction grating or prism that disperses the light and allows only the desired wavelength for measurement to pass through an exit slit. This ensures that the sample is exposed to light only at the specific wavelength the researcher has selected.
-
Sample Compartment and Cuvette: The light exiting the monochromator enters the sample compartment and passes through the cuvette (the container holding the sample). Cuvettes are made of different materials that must be transparent to the wavelength range being used:
-
Quartz Cuvettes: Suitable for measurements in both the UV and VIS ranges (typically 200 to 800 nm).
-
Glass Cuvettes: Only usable for the visible range (above 320 nm).
-
Plastic Cuvettes: Mostly used for routine applications in the visible range.
-
Detector: After the light passes through the sample, the light that was not absorbed (transmitted) reaches the detector. The detector converts the light into an electrical signal. The magnitude of this signal is proportional to the intensity of the transmitted light. Common types of detectors include Photodiodes or Photomultiplier Tubes (PMT).
-
Processor and Display: The electrical signal generated by the detector is sent to a processing unit. This unit analyzes the signal and converts it into understandable absorbance or transmittance values. The results are then displayed on a screen (like an LCD or touchscreen) and can be transferred to a computer for further analysis.
In a single-beam spectrophotometer like the Techcomp S1010/1020, light, after passing through the monochromator, is directed straight to the sample and then hits the detector. This simpler setup helps reduce the cost and size of the instrument and is very efficient for many routine and educational applications.
Section 2: Detailed Introduction to the Techcomp S1010/1020 Single-Beam UV-VIS Spectrophotometer

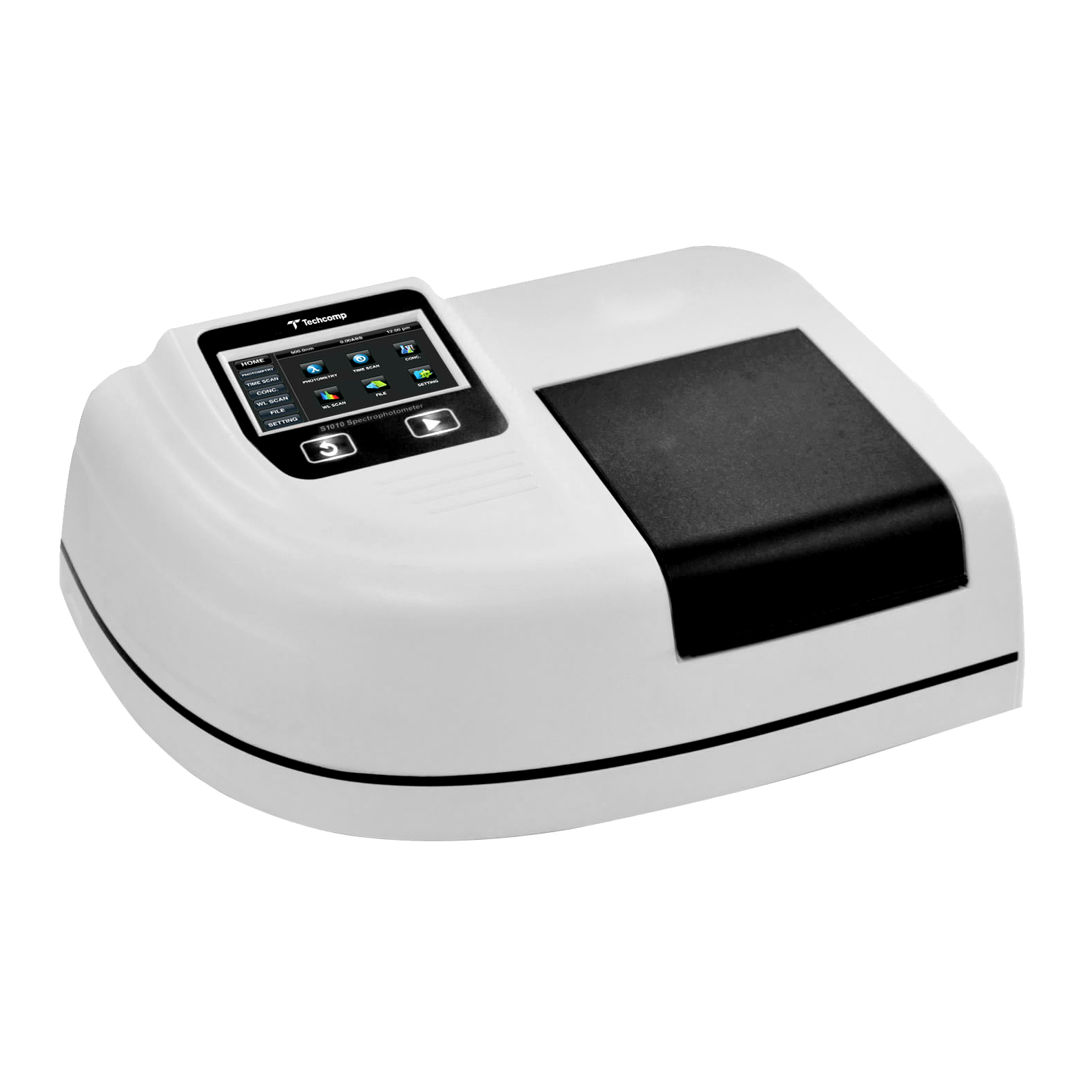

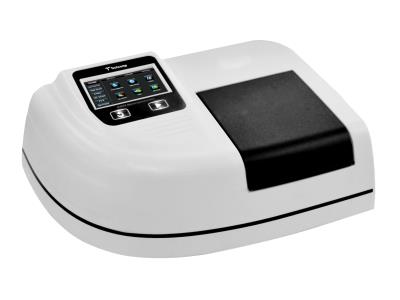

Getting to Know the Techcomp S1010/1020 Single-Beam UV-VIS Spectrophotometer: Innovation in Measurement
Among the wide array of spectrophotometers available on the market, the Techcomp S1010/1020 series has carved out a unique spot for itself due to its exceptional combination of accuracy, ease of use, and durability. These instruments are not only powerful tools for carrying out complex measurements, but their user-friendly design also provides a pleasant operating experience, making them ideal for a wide range of users, from university students and professors to quality control specialists in various industries.
Why the Techcomp S1010/1020? The Model's Place in the Market
Techcomp Ltd. is a well-established and recognized manufacturer of analytical, laboratory, and biotechnology instruments, with over three decades of experience in designing and producing advanced equipment. Focusing on innovation, quality, and customer support, the company offers its products in over 90 countries worldwide. Techcomp spectrophotometers are no exception; they have quickly gained traction in many labs due to their high precision, reliability, and competitive pricing.
The S1010/1020 series is specifically engineered to meet the needs of a broad range of applications. These models are popular choices for educational settings, small to medium quality control labs, and basic research because they are simple to set up and operate, require minimal maintenance, and deliver dependable results. The reliability of these instruments means users can confidently rely on their outcomes, which is paramount in research and industrial environments where accuracy is key.
Key Differences Between the S1010 and S1020 Models
Although both the Techcomp S1010/1020 single-beam UV-VIS spectrophotometers utilize a similar design platform, there are key differences in their light sources—and consequently, their wavelength ranges—that make each model more suitable for specific applications:
1. The Techcomp S1010 Model:
-
Light Source: This model uses a Tungsten-Halogen lamp as its light source.
-
Wavelength Range: Due to the lamp type, the S1010 is primarily designed for measurements in the Visible (VIS) range, typically from 320 nm to 1100 nm. This range is sufficient for many routine applications in general chemistry, education, and certain industries like food production that only require measurements in the visible spectrum.
-
Applications: Ideal for determining the concentration of colored compounds, examining absorption in the visible range, and teaching applications where UV-range measurement isn't necessary.
2. The Techcomp S1020 Model:
-
Light Source: This more advanced model uses a Xenon Lamp. Because it generates a broad, integrated light spectrum, the Xenon lamp covers both the ultraviolet and visible ranges.
-
Wavelength Range: The S1020 is capable of performing measurements in both the ultraviolet (UV) and visible (VIS) ranges, typically from 190 nm to 1100 nm. This wider coverage makes it a very versatile instrument.
-
Applications: This model is essential for more complex and broader applications such as biochemistry (determining DNA/RNA and protein concentrations), pharmaceuticals (drug substance analysis), environmental science (pollutant detection), and advanced research that requires analysis in the UV range.
The choice between the S1010 and S1020 models directly depends on the specific needs of the lab and the type of samples and analyses that will be performed. If you only need measurements in the visible range and have a limited budget, the S1010 is an excellent, cost-effective option. However, if your applications include a wider range of analyses, especially in the ultraviolet range, the Techcomp S1020 will be worth the investment for its broader capabilities. This distinction in the light source is the primary factor driving the difference in price and capabilities between the two instruments. Both models are considered leaders in their class, delivering high value and utility to users.
